This well imaging system is also known as the drilling digital color camera system, drilling television, underwater camera. It is applicable to engineering geology, hydrogeology, geological exploration, mining, concrete, underground pipelines of pile foundations, water wells, etc. The drilling inspection television is the main equipment for obtaining clear images in underwater environments, and is used for drilling, well repair, retrieving fallen objects from the bottom of the well. It can transmit the conditions inside the well to the ground. The drilling inspection television can also be widely applied in water well inspection (detecting damage to the well wall, misalignment, cracks, cavities and fallen objects in the well), underwater measurement, underwater operations, underwater exploration, sewage treatment, aquaculture, etc.

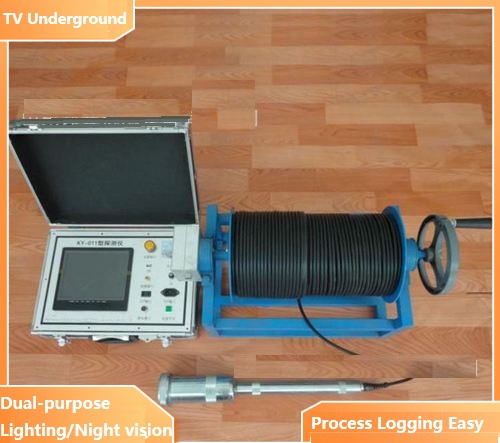

The performance features of the JDS-1 downhole television:
1.Small in size and highly intelligent
2. High resolution, intuitive perception
3. High-definition imaging, real-time transmission
4. Panoramic transition, free control
5. Massive data storage image burning
Electric winch: Variable speed
Imaging chip: 1/3-inch color CCD, with a sensitivity of 0.1 lux.
2. Camera shooting 360-degree horizontal rotation, 180-degree vertical rotation
Manually adjust the focus and pause at any position.
3. Withstand pressure Not less than 15 Mpa
4. Probe diameter Select the range from 40mm to 120mm for the panoramic camera lens. Lighting device Former LED lamp beads, with adjustable light intensity ranging from 8 levels.
5. Measurable depth 0 - 9999 meters (depending on the length of the cable) The standard configuration is a length of 100 meters.(Cable compressive strength 250kg)
6. Working Voltage Rated voltage: 220v, 50hz; Optional DC: 12v ± 5%, 24v

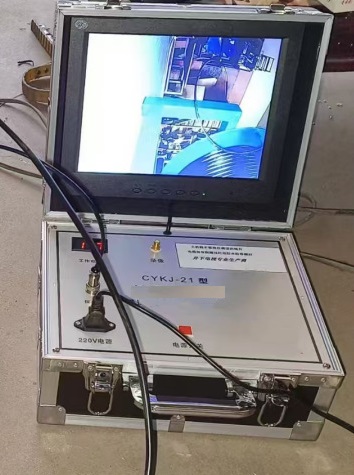

7. Size of the main control box 430 x 350 x 150 mm, 2.6 kg. High-brightness LCD 8-inch display, resolution 1024*768
8. Connection line Data cable, power cord
