High-flow 3D rotating jet cleaning gun

The three-dimensional rotating cleaning nozzle is specially designed for mechanical cleaning equipment of storage tanks. It is driven by pneumatic power and features a dual rotation range of X:0 - 360° +Y: 0 - 170°, enabling it to achieve jet impact at any point in space.

Functions: Mixing function, Spraying function, Rotating function (optional to add explosion-proof infrared camera)

Product Description:

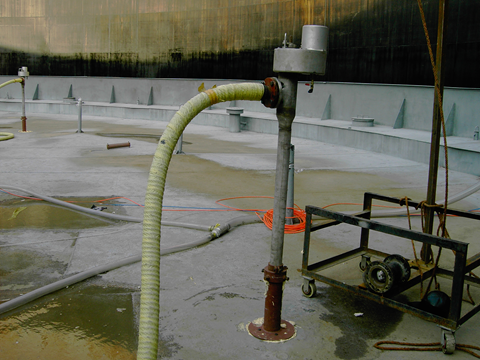

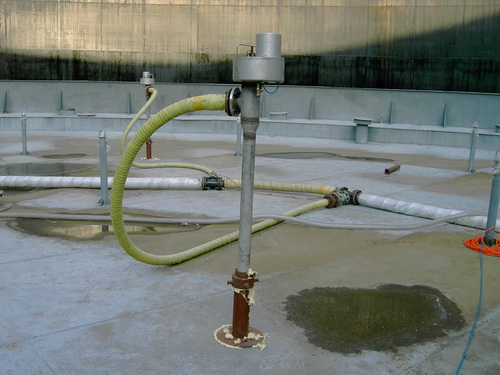

1. Installation method: Simply insert it from the top of the storage tank and fix it;
2. Driving method: Powered by compressed air, eliminating the pressure loss caused by jet recoil. It can be used even in explosion-prone environments;
3. Interface size: The cleaning fluid is connected to the input nozzle through the flange. The flange diameter is DN65 - 16 bar;
4. Rotating part length: 425mm;
5. Insertion depth: JETCOTW1/ATL80-325 can be inserted to a depth of 2 meters, JETCOTW3/ATL80-625 can be inserted to a depth of 5 meters;
6. Whether it comes with an installation bracket: Yes;
7. Compatible fluid parameters:
Pressure: 0 - 15 bar
Flow rate: 70-120 tons/hour
Compressed air pressure: 0.4 - 1.0 bar
8. Working life: Continuous 24 hours, 5 - 8 years;
9. Weight: 45 - 65 KG per unit, Rotating cycle: Approximately 1.5 hours for one cycle;
10. Main materials: 304SS, T2 copper, explosion-proof design;
11. Delivery time: In stock
12. Packaging and Transportation: Steel welded supports are fixed (more than 4 pieces are exempt from packaging fee). The transportation method is determined by the customer.
13. Warranty Period: Normal operation warranty period is one year.
