  • Model: XUT520B
  • Shipping Weight: 1.59 kg
  • 5 Units in Stock
  • Manufactured by: AIC Cleaner

 Ask a Question

$3,890.00
(image for) Call for Price

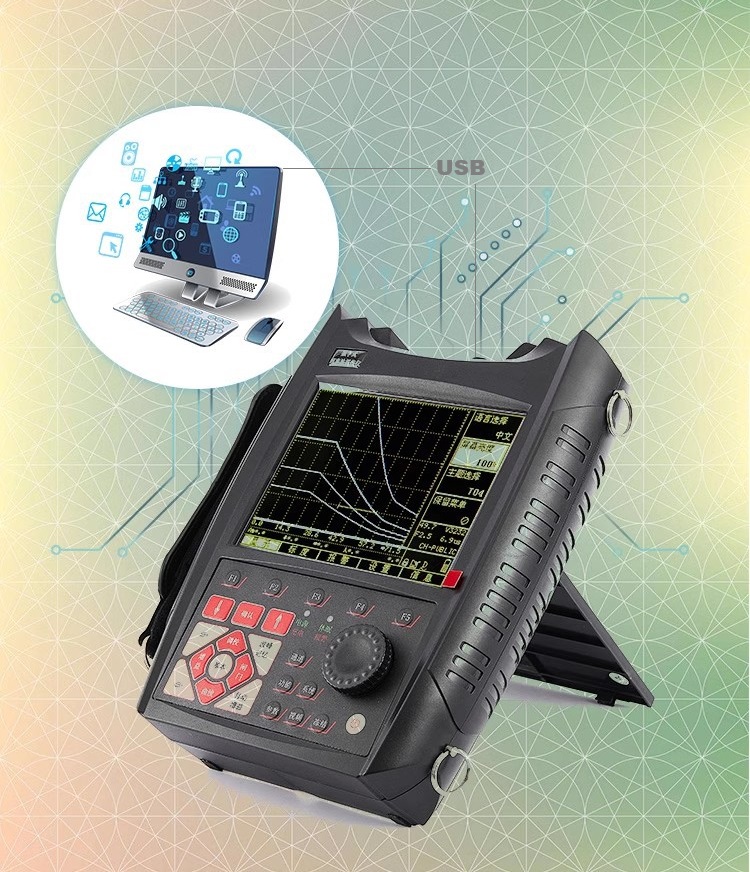

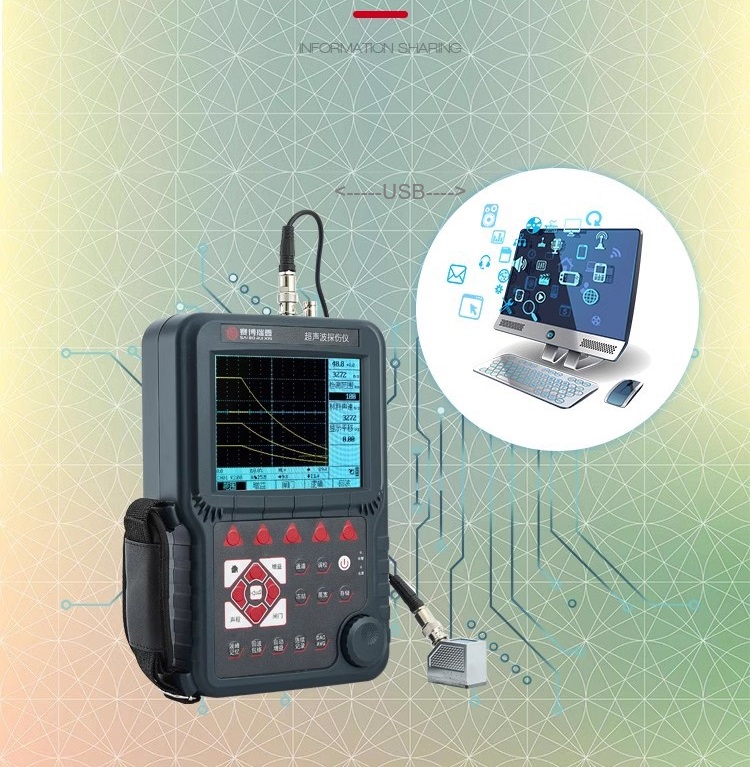

Ultrasonic flaw detector；

Metal thickness measuring instrument；

Welding seam quality detector；

Pipeline ℘container leak detector；

Bridge Deformation Alarm Instrument；

Non-destructive testing instrument for metal welding cracks, weld porosity and steel pipes

Model XUT520B XUT350B XUT560C XUT600C XUT610C
Detection range (mm) 0-5000   0-9999 0-9999
Working frequency(MHz) 0.4-10   0.2-15 0.2-20
Sound velocity range(m/s) 1000-9999   1000-9999 1000-15000
Gain range(dB)     0-110
Sampling frequency(MHz)     100
Display delay(μs)     -20-+3400
Probe zero offset(μs)     0-99.99
 Electrical noise level     ≤10%
Sensitivity margin(dB) 32   62 36
Resolution(dB)     40(5P14) 40(5P14)
Vertical linearity error 3%   ≤3% ≤2.5%
Horizontal linear error 0.3%   ≤0.1% ≤0.1%
Dynamic range(dB)     ≥32
Battery（3.7V）     6
Power supply(V)     8.4
Ambient temperature(°C)     -20-+50
Environmental humidity(HR)     20-90%
Weight(kg)     1.56
Size     23*17*5.5
Price  $3,890.00 $ $ $ $
