Groundwater Detector For Well Drilling

Concept: Groundwater electromagnetic detection is a geophysical exploration technology that utilizes the difference in electrical conductivity between underground rock layers and water bodies. By observing changes in natural or artificial electromagnetic fields, it infers the distribution, depth, and water-richness of underground aquifers.

Importance: It is the "X-ray eye" before digging a well. Precise electromagnetic detection can effectively distinguish water-bearing structures from dry rock strata, significantly increase the well completion rate, and avoid huge waste caused by blind drilling. It can optimize the well location design and ensure the acquisition of high-quality and abundant water sources, which is a key step in scientific water search and cost savings.

AIC Cleaner Shopping the various models of groundwater detectors provided are suitable for detection instruments of different sizes and precisions. They can also be used for detailed and general exploration of metallic and non-metallic minerals, reducing the investment risks of mines and improving the success rate and scientific nature of mining.

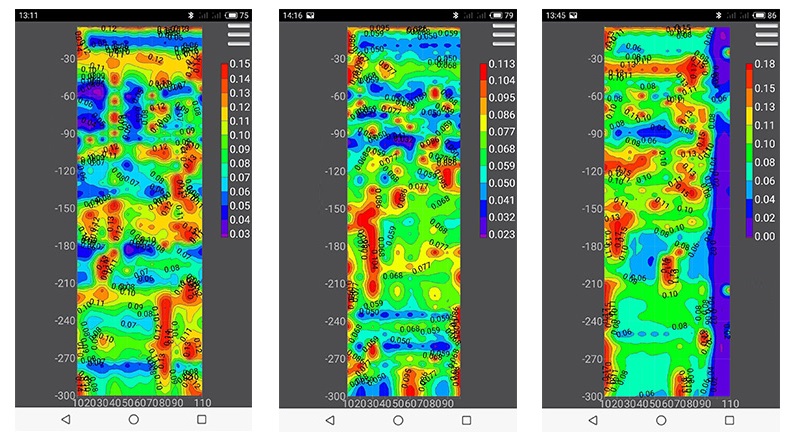

The single-channel mineral and material detection water-finding instrument adopts a 7-inch touch screen to generate real-time 2D and 3D images.

Model	ADMT-200AX	ADMT-500AX
Maximum depth(M)	<200	<500
Channel input	1-channel MN input	1-channel MN input
Deep stratification()	10-100	10-100
Measurement mode	MN/TT	MN/TT
Frequency range (HZ)	1-8K	1-8K
Resolution	0.1mV±2%	0.1mV±2%
Sampling time (s)	100-360	100-360
Battery power consumption(mA/H)	700	700
Price:$	3,400.00	5,960.00

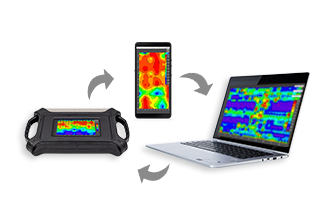

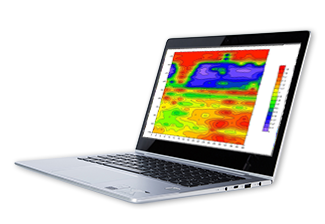

The ZN Fast Multi-channel water finder is a new generation of water finder that features fast measurement speed, high accuracy, and is compatible with 1, 12, 24, 36, and 48 channels in one device. Based on the MT electromagnetic method, the instrument uses multiple channels to measure the strength of natural electromagnetic fields, obtaining a stable field source. This solves the problems of natural electric field changes over time and errors caused by the movement of MN electrodes. The instrument analyzes the changes in underground resistivity to determine the location, depth and other related information of groundwater. Its data collection speed is ten times faster than that of ordinary multi-channel instruments, and it can collect ten times more data in the same period of time, greatly improving the accuracy. At the same time, the instrument has multiple functions, is lightweight, waterproof, shockproof, dustproof, supports wireless screen projection and multi-screen interaction, and can be connected to an external power bank for battery life.

Model	ADMT-180ZN	ADMT-300ZN	ADMT-600ZN	ADMT-900ZN	ADMT-1200ZN
Maximum depth (m)	<=180	<=300	<=600	<=900	<=1200
Deep stratification	segmented at intervals  5 /10 meters	10 meters	10 meters	10/15	10/15
Channel compatibility	1-60
Measurement mode	MN/TT
Resolution	0.01mV±2%	0.01mV±2%	0.01mV±2%	0.01mV±2%	0.01mV±2%
Sampling time (s)	10	10	10	10	10
Connection method
Display screen	7inch
Memory(GB)	32
Battery capacity(mAh)	6000
Price:$	1,680.00	2,080.00	2,640.00	3,440.00	4,800.00

If you want to know how to use it, how to determine the distribution of underground minerals and more information, please email: aic_wang@qq.com
